What is the maximum speed of a pick and carry crane?

The maximum speed of a pick and carry crane typically ranges from 10 to 20 km/h depending on the model and load conditions.

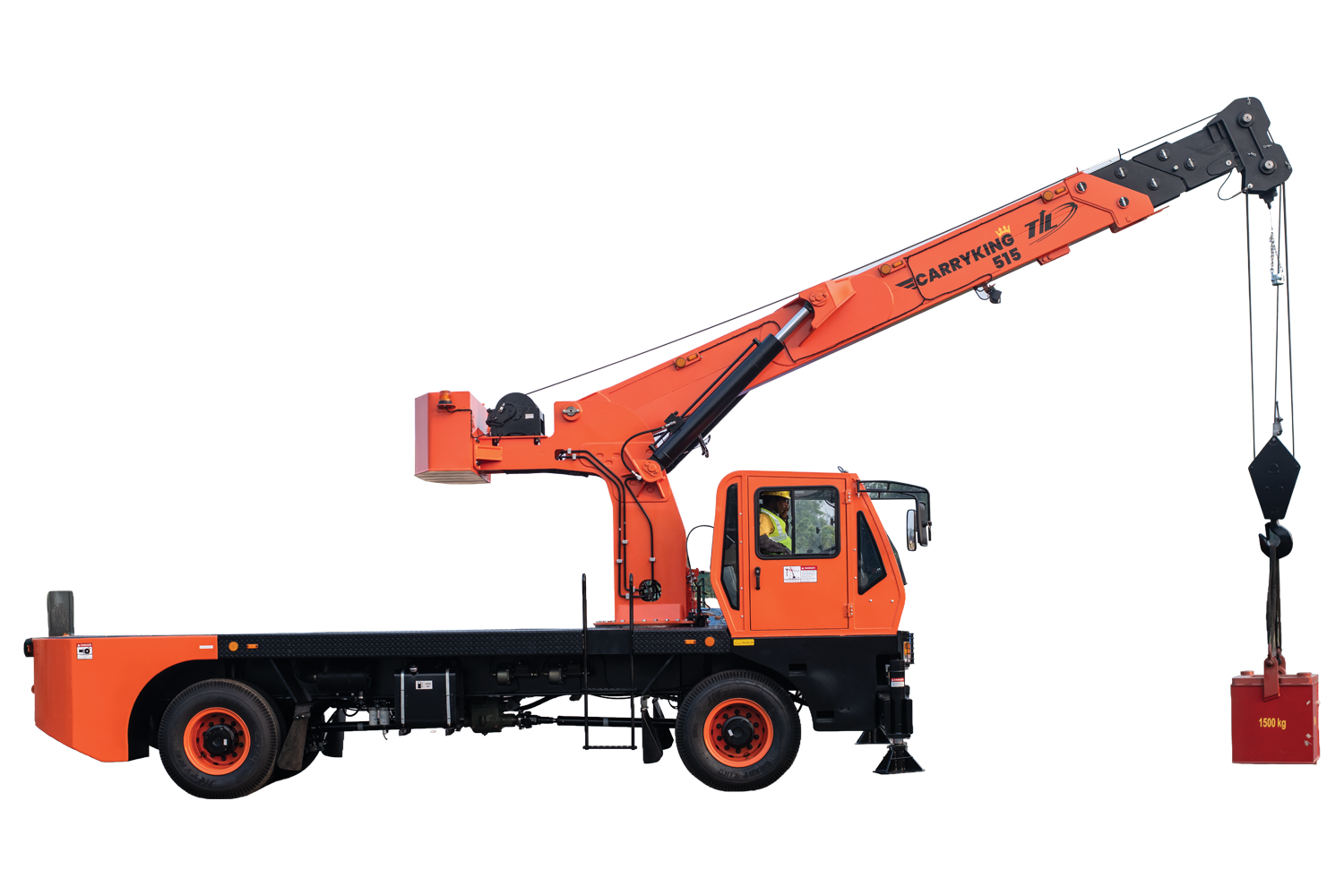

Pick and Carry On Deck Crane by TIL – CarryKing 515

Q: How many tons can a pick and carry crane lift?

Pick and carry cranes can lift between 5 to 50 tons depending on the specific model and design.

CarryKing 515 - India's First Pick and Carry On Deck Crane by TIL – CarryKing 515

TIL's 15-ton CarryKing Pick & Carry On-Deck Crane sets a new benchmark in speed, performance and job site efficiency.

Winner of the India Design Mark Award (in collaboration with Good Design, Japan), its vibrant, modern design matches its powerful performance.

Engineered and fully patented in India, it lifts, carries, and transports loads on deck, replacing multiple support vehicles.

Featuring 360° continuous slew—the first in India—this crane enables smooth positioning, tighter control, and faster workflows, reducing traffic and improving operations on congested work sites.

Back to Products

Three Ka Dum

Key Features

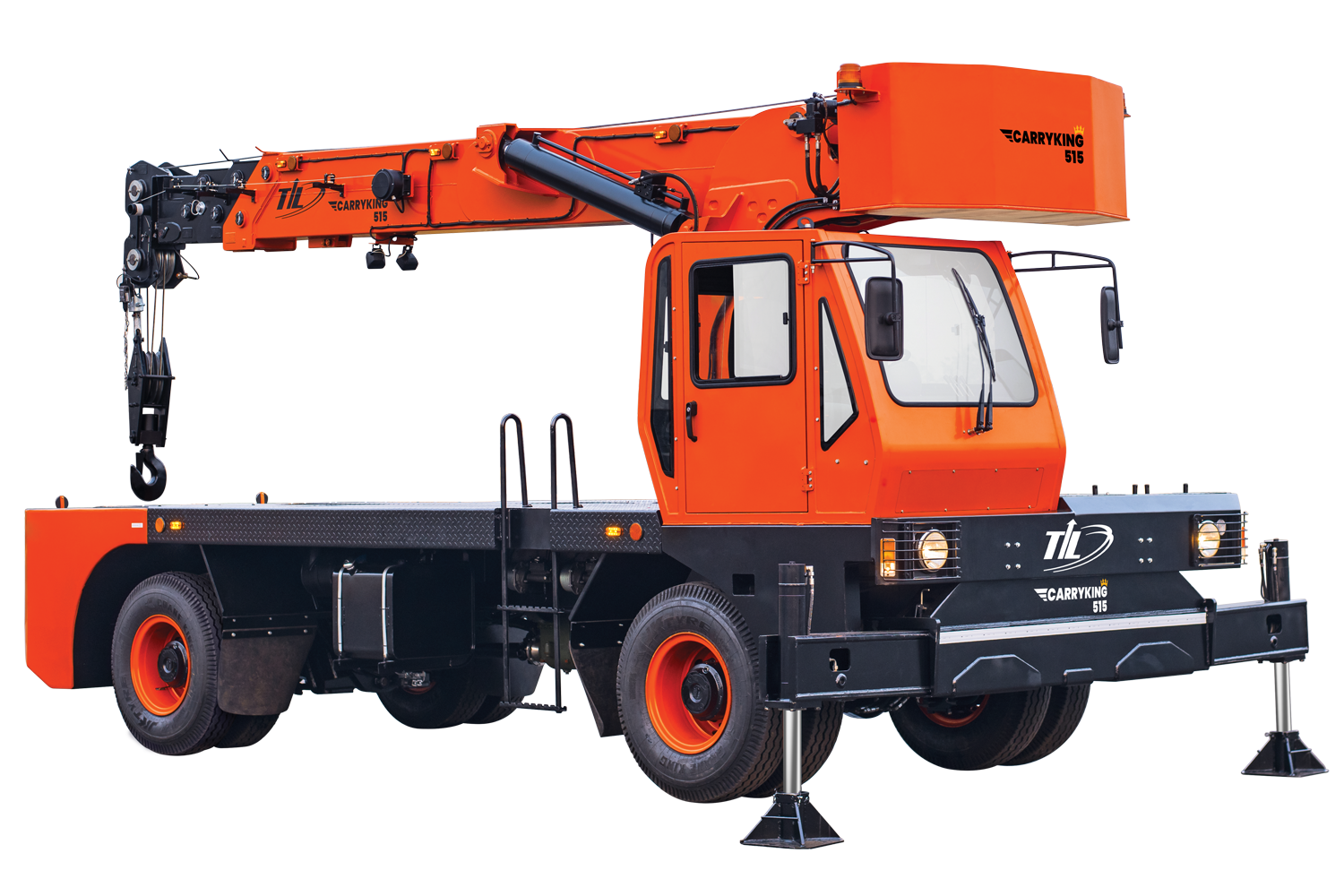

Pick and Carry

•Capacity – 85% Rating
•Pick and Carry – 15 MT at 2.5m radius

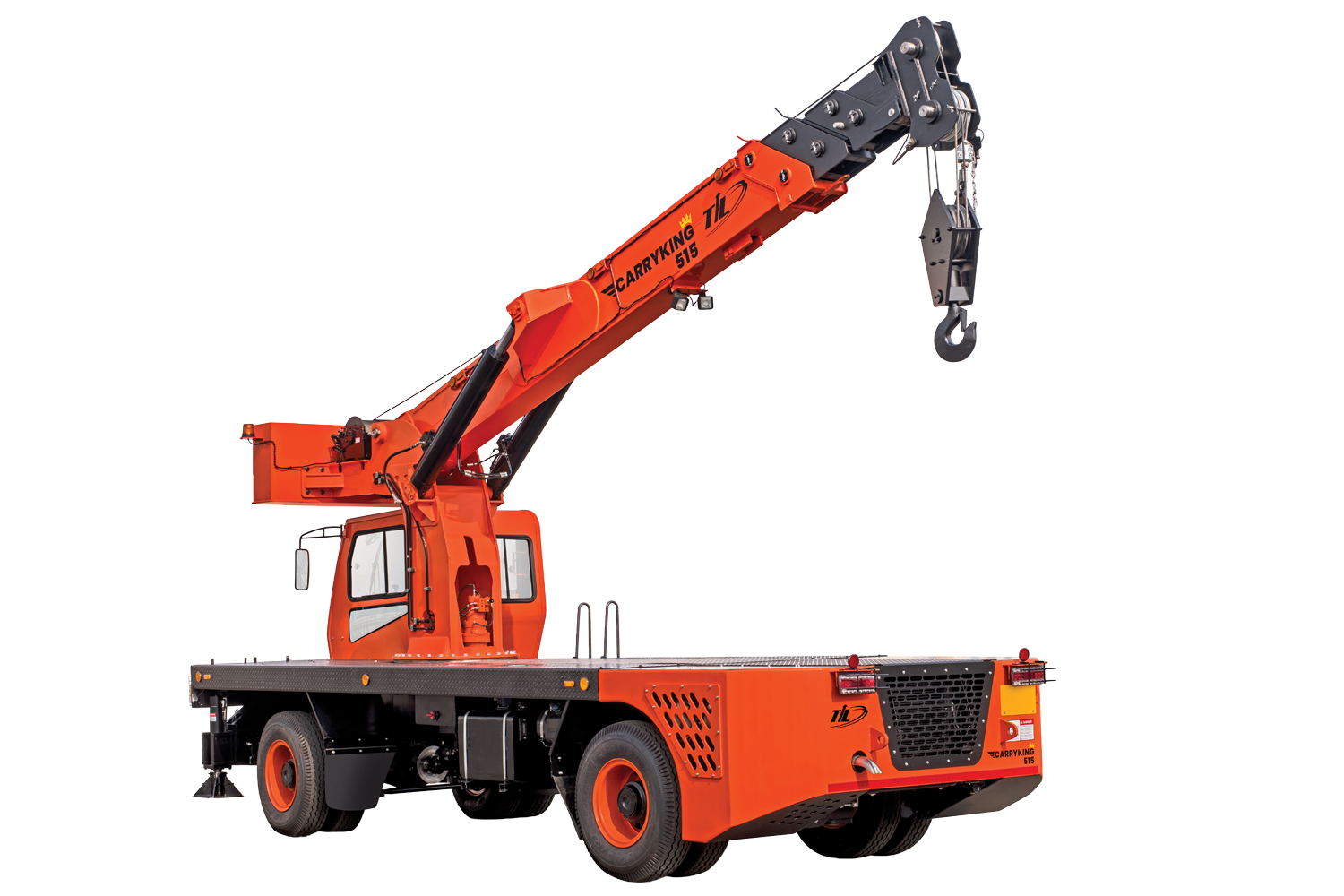

Carry on Deck

•Carrier – 4×4 drive
4×2 drive with rear axle disconnected
•Max. Road Speed (with 6T load on deck) – 15 km/hr

CarryKing 515 360 degree slew pick and carry crane

360° Slew

•360° Slew (On Tyres) – 8 MT at 2.5m radius
•360° Slew (On Outrigger) – 8 MT at 3m radius

Watch the CarryKing 515 in Action

Watch the CarryKing 515 demonstrate its revolutionary 360° continuous slew capability, pick-and-carry functionality, and unmatched maneuverability on the job site.

Technical Specifications

Feature	Specification
Max. Road Speed (unladen)	26.5 km/hr
Boom	4 Section - 6.5m to 17m
Turning circle diameter	21.5m (only front wheel steer) 13.8m (with all-wheel steer)
Full deck length	7.5m

Industrial Applications

This crane serves large and demanding segments:

•Metro and bridge construction
•Steel and power plant maintenance
•Mining and cement operations
•Ports and rail yards

Frequently Asked Questions

A pick and carry crane is a type of mobile crane designed to lift and transport loads without needing to set up on outriggers, allowing for quick mobility and versatility on job sites.

The maximum speed of a pick and carry crane typically ranges from 10 to 20 km/h (6 to 12 mph), depending on the model and load conditions.

Pick and carry cranes can lift between 5 to 50 tons, depending on the specific model and design.

These cranes are commonly used in construction, manufacturing, and warehousing to move materials and equipment around job sites efficiently.

The main benefit is their ability to lift and transport loads simultaneously, which increases productivity and reduces the need for additional equipment.

A unique feature of til pick-up cranes is their compact design, which allows for excellent manoeuvrability in tight spaces while maintaining high lifting capacity.

Feature

Specification

Max. Road Speed (unladen)

26.5 km/hr

Boom

4 Section - 6.5m to 17m

Turning circle diameter

21.5m (only front wheel steer)
13.8m (with all-wheel steer)

Full deck length

7.5m
