RT 740B

Meet the RT 740B

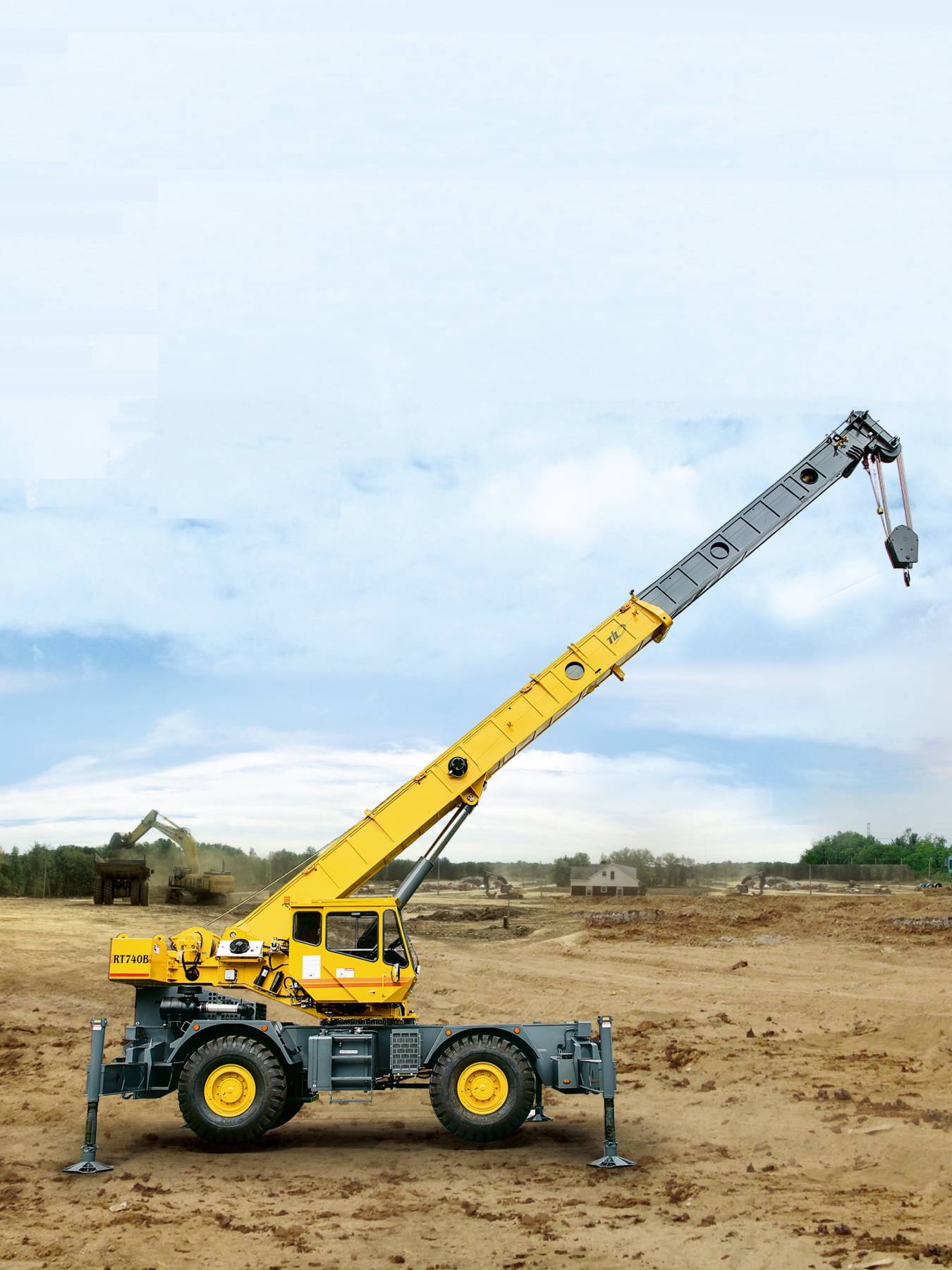

The RT 740B is a versatile RT crane best suited for industrial and construction applications. A powerful hydraulic system allows it to manage heavy loads on rugged or uneven terrains. It has an extendable telescopic boom that offers a wide operating range for varied lifting tasks. The high-strength alloy steel welded section of the carrier and enclosed steel operator's cab fitted with toughened glass add to the safety of the equipment. Advanced LMI and A2B Systems like Load Moment Indicator and Anti-Two Block systems with audio-visual warning and control lever lock-out provide electronic display of boom angle, boom length, radius, relative load moment, maximum permissible load, load indication and warning of impending two-block condition. Overall, the RT 740B is a great choice if you want the right combination of durability, safety and efficiency.

TIL RT 740B Crane Features

FeatureDetails
Max. Capacity (Outriggers)40.0 Tonnes at 3m Radius (85% Rating) 360° Slew
Max. Capacity (On Tyres)17.35 Tonnes Over Front
Boom Length 10.6m - 33.5m trapezoidal
Maximum Tip Height35.9 m
Maximum road speed26 kmph
Gross Vehicle Weight30,077 kgs
